VAN BI NHỰA CPVC BAODI TRUNG QUỐC

VAN BI NHỰA CPVC BAODI TRUNG QUỐC

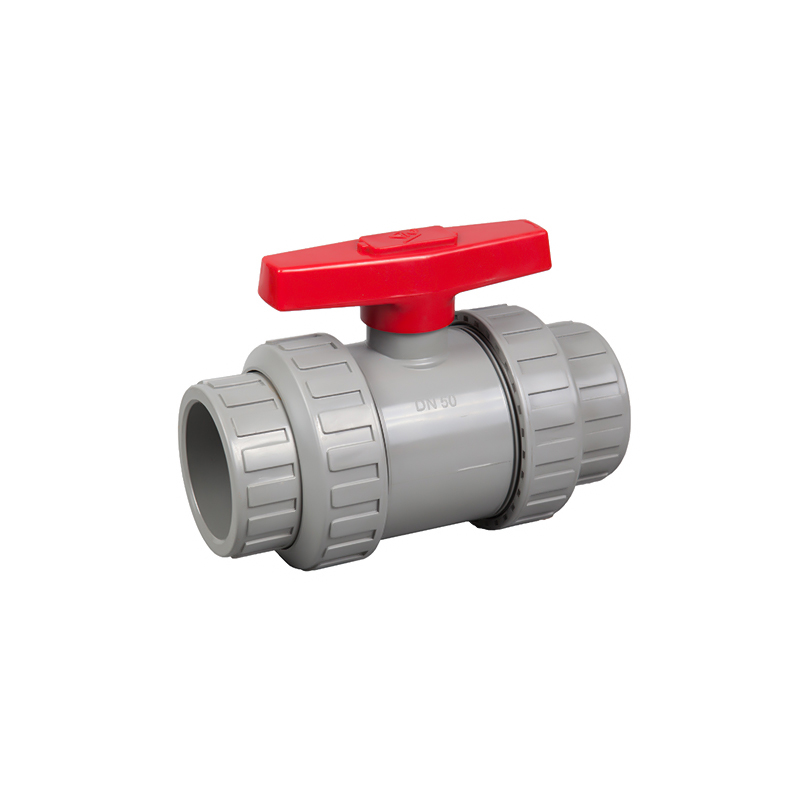

CPVC DOUBLE UNION BALL VALVE

Media: Acid, alkali
Material: Plastic-CPVC
Connection Form: Socket Welding/Cement/Thread
Driving Mode: Manual
Nominal Pressure: PN1.0-32.0MPa
Channel: Straight Through Type
Structure: Fixed Ball Valve
Nominal Pressure: Pn6,JIS10k,ANSI150#
Model NO.: Q61F-6S
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Temperature: Normal Temperature
Application: Industrial Usage
Size: Dn15-Dn100(1/2′′-4′′)
Trademark: Baodi
Transport Package: Carton
Specification: 1/2"-4"
Origin: China
HS Code: 8481804090

Khối lượng:

1.000.000 đ

Số lượng

Chi tiết sản phẩm
Đánh Giá Sản Phẩm

CPVC DOUBLE UNION BALL VALVE DETAILS

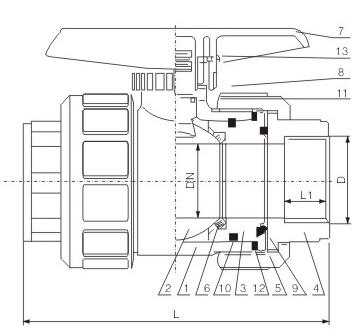

Part material list

The datas are updating. Please contact our sales for more details

NO.	Name	Material	NO.	N am e	Material
1	Body	FRPP.PVDF.UPVC.CPVC	8	Stem	FRPP.PVDF.UPVC.CPVC
2	Ball	FRPP.PVDF.UPVC.CPVC	0	Sealing i mrj	EPDM.FPM
3	Retaining	FRPP.PVDF.UPVC.CPVC	10	Sealing ring	EPDM.FPM
4	Screw join	FRPP.PVDF.UPVC.CPVC	11	Sealing ring	EPDM.FPM
5	Compression nut	FRPP.PVDF.UPVC.CPVC	12	Seal ring	PTFE
6	Seal ring	PTFE	13	Screw	Mstal
7	Hand wheel	ABS.

Ball valve specs dimension list

The datas are updating. Please contact our sales for more details

DN	ZG	D	L	LI	(Mpa) Working pressure	kg/Weight
						FRPP	CPVC	PVDF
15	1/2"	20	100	15	0.6	0.15	0.25	0.25
20	3/4"	25	120	17	0.6	0.2	0.28	035
25	1"	32	135	20	0.6	0.3	0.4	0.5
32	l l/4"	40	150	23	0.6	0.5	0.65	0.8
40	1 1/2"	50	170	25	0.6	0.6	1.0	1.15
50	2"	63	200	28	0.6	1.0	1.65	135
65	2 l/2"	75	215	32	0.5	1.5	2.2	2.5
80	3"	90	265	35	0.4	2.2	3.7	4.2
100	4"	110	360	45	0.4	3.0	6.1	6.8
