MODEL: MD-14W - VAN ĐIỀU KHIỂN KIỂM SOÁT ÁP SUẤT ĐẦU VÀO - VENN- NHẬT

MODEL: MD-14W - VAN ĐIỀU KHIỂN KIỂM SOÁT ÁP SUẤT ĐẦU VÀO - VENN- NHẬT
VENN Circuit valve, VENN primary pressure control valve

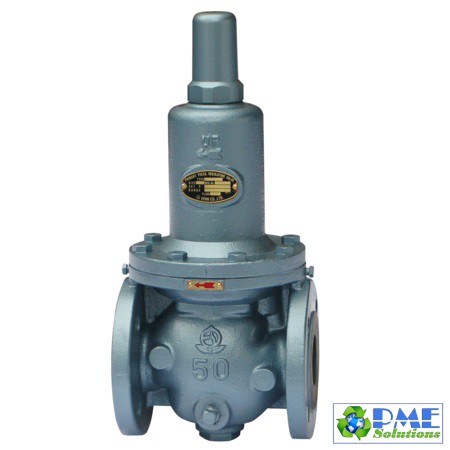

MD-14W type primary pressure control valve



Khối lượng:
1.000.000 đ
Số lượng

Circuit valve, primary pressure control valve
MD-14W type primary pressure control valve


It is a self-powered adjustment valve that releases an excessive amount of pressure due to load fluctuations and keeps the pressure of equipment and piping constant. It is a kind of high-performance relief valve. For example, in the case of continuous operation of the pump, the discharge side pressure changes due to load fluctuation, but the discharge pressure is adjusted to be constant by providing an MD-14 type primary pressure adjustment valve in the bypass circuit and releasing excessive pressure. can. It can also be used as a relief valve for pressure tanks and pipes.




Major features

  • Used as a pump relief valve. The operation is stable with a structure that considers hunting and vibration.
  • It can be used as a relief valve for pressure tanks and piping.
  • Since the piston type balance structure is adopted, the change in blowout pressure due to back pressure fluctuation is small.
  • Maintenance is easy because the internal inspection can be performed by disassembling from one direction on the upper side.
  • MD-14CN type is a rust-resistant nylon coating.


Specification:

For MD-14W and 14H types, we also manufacture a pressure gauge with a connection hole (JIS Rc 1/4 screw) on the side of the main body, or a pressure gauge with a pressure gauge attached to it. (The maximum scale of the pressure gauge is the set pressure adjustment range L (0.6MPa), M, H (1.6MPa)

Product code MD14W-B □
Valve type Primary pressure control valve
type Goods
Nominal diameter 15-150 (1/2-6)
Applicable fluid Water / air
Fluid temperature 5-60 ℃
Set pressure adjustment range Nominal diameter 80 or less L: 0.05 to 0.35MPa, M (MD-14CN type is H): 0.3 to 0.7MPa
Nominal diameter 100 or more L: 0.05 to 0.35 MPa, M (MD-14CN type is H): 0.3 to 0.5 MPa
Fluid viscosity
End connection JIS 10K RF flange
Body pressure resistance test 1.5MPa at water pressure
Mounting posture Horizontal / vertical freedom
Material body FC
Material parts CAC406, SUS
Material Diaphragm disc NBR
Painting or coating coating Inner surface: Liquid epoxy resin for water supply
Exterior: Metallic blue
