MODEL: WVM-02 - VAN ĐIỀU KHIỂN KIỂM SOÁT ÁP SUẤT ĐẦU VÀO - VENN- NHẬT

VAN ĐIỀU KHIỂN KIỂM SOÁT ÁP SUẤT ĐẦU VÀO CHO HỆ NƯỚC
VENN- NHẬT
MODEL: WVM-02

Anh chị vui lòng gọi điện hoặc gởi nhu cầu qua ZALO số 0902720814 / 0907450506 / 0766226161 gặp nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc gửi email vào hòm thư: sales@pm-e.vn / info@pm-e.vn.

Khối lượng:

1.000.000 đ

Số lượng

Chi tiết sản phẩm
Đánh Giá Sản Phẩm

Circuit valve, primary pressure control valve

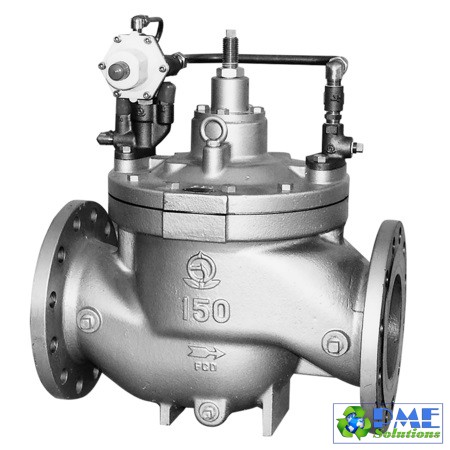

WVM-02 type primary pressure control valve (for water)

This is a large-capacity primary pressure control valve that releases an excessive amount of pressure at the desired pressure due to load fluctuations in pipes and circuits such as air conditioning and sanitary equipment, and keeps the pressure on the primary side of the valve constant.

Major features

Stable operation can be easily obtained by adjusting the sensitivity by adjusting the needle valve opening according to the usage conditions.
The basic valve and pilot valve can be easily disassembled for easy maintenance such as adjustment, repair, and parts replacement.
The lift limiting mechanism can limit the overflow.

Specification:

We also manufacture WVM-02PN type (main body inner and outer surface epoxy resin powder coating) and WVM-02N type (main body inner surface water supply liquid epoxy resin coating) that conform to the performance standards of the Waterworks Law (main body material FC, nominal diameter 80-200). doing.
We also manufacture one with a pressure gauge. (The maximum scale of the pressure gauge is the set pressure adjustment range L (0.6MPa), M (1.6MPa).)
Please refer to page 157 of the general catalog for the nominal diameter selection chart and page 175 for the piping example diagram

Product code	WVM02-B □	WVM02-L □
Valve type	Primary pressure control valve
Use	Goods
Nominal diameter	50-400 (2-16)	40-200 (1 1/2-8)
Applicable fluid	Water / hot water
Fluid temperature	5-60 ℃
Primary side applied pressure	1.0MPa or less
Set pressure adjustment range	Nominal diameter 200 or less L: 0.05 to 0.35MPa, M: 0.3 to 1.0MPa Nominal diameter 250 or more L: 0.05 to 0.35MPa, M: 0.3 to 0.7MPa
Blow-down pressure	Set pressure adjustment range 0.05 to 0.35MPa: Set pressure x 20% or less (minimum value 0.03MPa) Set pressure adjustment range 0.3 to 0.7, 0.3 to 1.0 MPa: Set pressure x 15% or less
Accumulation	Set pressure x 10% or less (minimum value 0.03MPa)
End connection	JIS 10K RF flange
Pressure resistance test (water pressure)	1.5MPa
Mounting posture	Horizontal / vertical (However, if the nominal diameter is 250 or more, it is mounted upright on the horizontal pipe)
Basic valve material body	FC	FCD
Basic valve material Main part Diaphragm disc	NBR
Basic valve material Main part Valve seat	CAC406
Basic valve painting inner surface	Liquid epoxy resin for water supply
Basic valve painting outer surface	─
