Safety relief valve, safety valve, relief valve

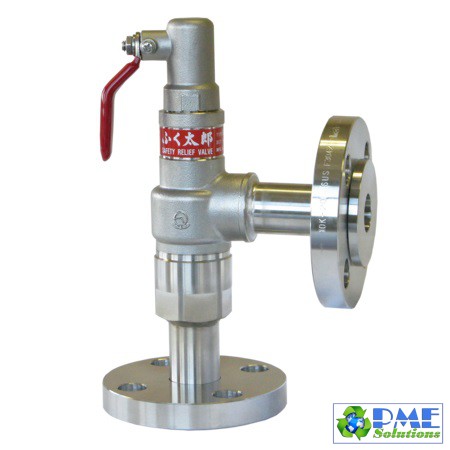

SL-39F type safety relief valve

The safety relief valve "Fukutaro" is positioned between the safety valve mainly used for steam and gas and the relief valve mainly used for liquids.
With its simple structure and excellent corrosion resistance, it can be widely used as a pressure vessel, safety device for various devices and devices, hot water boilers, water supply / cooling / heating equipment, and safety devices for pressure reducing valves.

Where to use: Pressure vessel, Hot water boiler, Heat exchanger, Pressure reducing valve for secondary side

Major features

A sealed type safety relief valve with excellent corrosion resistance for the spring case, main part SCS, and spring SUS.
It can be shared with three fluids: steam, gas, and liquid. (Metal sheet type)
It is 1 to 2 sizes lighter and smaller than our conventional products.

Specification:

Use the soft sheet type for frequently operated applications such as hot water boilers and heat exchangers that escape thermal expansion

Product code	SL39F-D □
format	Lifting ceremony
type	Hand supplies (metal sheet type)
Nameplate color	Red
Cap format	With a sealing lever
Nominal diameter	15-50 (1/2-2)
Applicable fluid	steam・. Gas / liquid
Set pressure range	0.05-1.0MPa
Fluid temperature	150 ° C or less (235 ° C or less) )
End connection	JIS 10K loose flange
Body pressure resistance test	2.0MPa at water pressure
Mounting posture	Upright mounting
Material body	SUS
Material Valve body	SCS
Material Valve seat	SUS
Material Spring case	SCS
