MODEL: RMU-3 - CỤM VAN GIẢM ÁP VÀ ĐẦU NỐI VENN NHẬT

Pressure reducing valve (for water / liquid / door-to-door water supply), constant flow valve, water hammer preventer

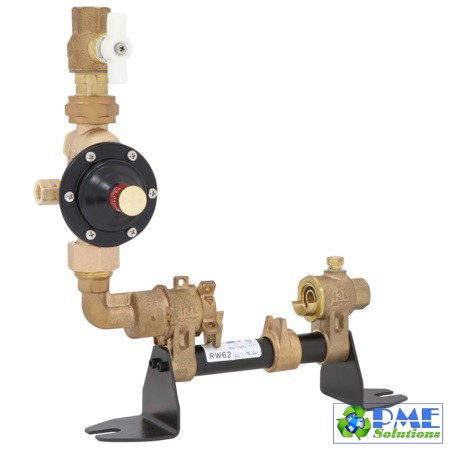

RMU-3 type meter unit

This product is a unitized product of a water stopcock around the meter, a pressure reducing valve, a telescopic pipe function, a check valve, and a pedestal in the pipe shaft of an apartment house.
Since the meter is connected by crimping by operating the handle, it is easy to install and remove.

* Specifications may differ depending on each business entity, so please contact us.

Where to use: housing complex

Major features

• Lightweight and compact design considering workability in a narrow pipe shaft.
• A tool-free crimping type that allows you to install and remove the meter by operating the handle.
• It corresponds to the vertical / horizontal piping and the flow direction from the right / left.
• The pedestal part has excellent corrosion resistance.
• A water stop cap can be attached to the water stopcock part.

specification

• The pressure gauge fitting can be used in combination with the opposite plug.
• The pressure gauge of the pressure reducing valve can be selected as A type or D type as an option. (The maximum scale of the pressure gauge is 0.5MPa.)
• We also manufacture meter surfaces with a nominal diameter of 13: 165 mm and a nominal diameter of 25: 210 mm.
