SL-38E/SL-38EN - VAN AN TOÀN - VENN-NHẬT

VAN AN TOÀN- VENN- NHẬT MODEL: SL-38E/SL-38EN
Anh chị vui lòng gọi điện hoặc gửi ZALO qua số 0902720814 / 0907450506 gặp Nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc email vào hòm thư: sales@pm-e.vn / info@pm-e.vn

Khối lượng:

1.000.000 đ

Số lượng

Chi tiết sản phẩm
Đánh Giá Sản Phẩm

Safety relief valve, safety valve, relief valve

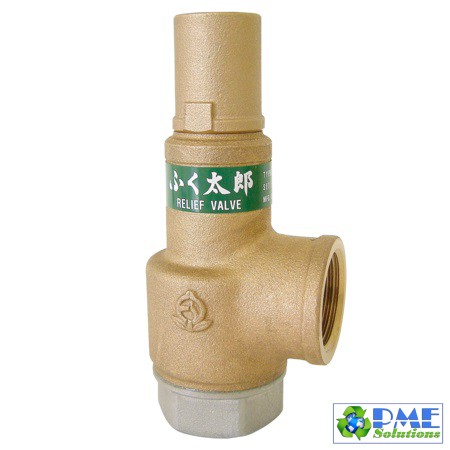

SL-38E type relief valve (for pump relief)

SL-38E, 38EA type pump relief valve is a relief valve for pressure adjustment exclusively for pumps, and has a structure that does not easily cause hunting or water hammer even if it is continuously missed.

Major features

The valve body has a dashpot structure, which suppresses the sudden movement of the valve body due to pulsating pressure and fluctuating pressure.
The increased pressure due to the load fluctuation of the pump is discharged, and the discharge pressure of the pump is kept constant.
The SL-38EA type can easily adjust the operating pressure by operating the handle.

Specification:

We also manufacture the SL-38EN type, which conforms to the performance standards of the Waterworks Law

Product code	SL38E-D □
format	Relief valve
Adjustment method	Adjustable screw type
Nameplate color	Green
Cap format	No lever
Nominal diameter	15-50 (1/2-2)
Applicable fluid	Water / oil / liquid
Set pressure range	Nominal diameter 15-50: 0.035-1.0MPa Nominal diameter 15-25: 1.0-1.6MPa
Fluid temperature	Manufactured up to 5-80 ° C (up to 150 ° C). )
End connection	JIS Rc screw
Body pressure resistance test	Twice the nominal pressure with water pressure
Mounting posture	Upright mounting
Material body	SCS
Material Valve body	SUS
Material Valve seat	SUS
