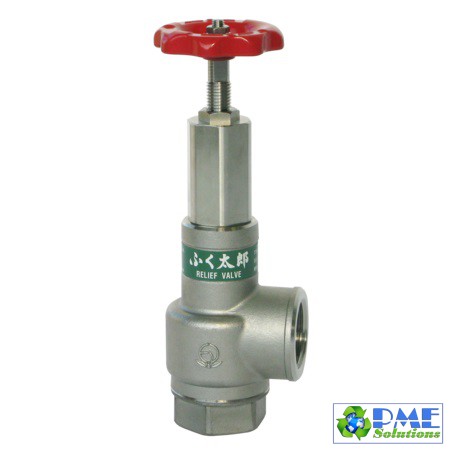

VAN AN TOÀN VENN - NHẬT
MODEL:SL-40EA
Safety relief valve, safety valve, relief valve
SL-40EA type relief valve (for pump relief)

The SL-40E, 40EA type pump relief valve is a pressure adjustment relief valve exclusively for pumps, and has a structure that does not easily cause hunting or water hammer even if it is continuously missed.

Major features

The valve body has a dashpot structure, which suppresses the sudden movement of the valve body due to pulsating pressure and fluctuating pressure.
The increased pressure due to the load fluctuation of the pump is discharged, and the discharge pressure of the pump is kept constant.
The SL-40EA type can easily adjust the operating pressure by operating the handle.

Specification:

Product code	SL40EA-D □
format	Relief valve
Adjustment method	Handle type
Nameplate color	Green
Cap format	With pressure adjustment handle
Nominal diameter	15-50 (1/2-2)
Applicable fluid	Water / oil / liquid
Set pressure range	Nominal diameter 15-50: 0.035-1.0MPa Nominal diameter 15-25: 1.0-1.6MPa
Fluid temperature	Manufactured up to 5-80 ° C (up to 150 ° C). )
End connection	JIS Rc screw
Body pressure resistance test	Twice the nominal pressure with water pressure
Mounting posture	Upright mounting
Material body	SCS
Material Valve body	SUS
Material Valve seat	SUS
Material Spring case	SCS
