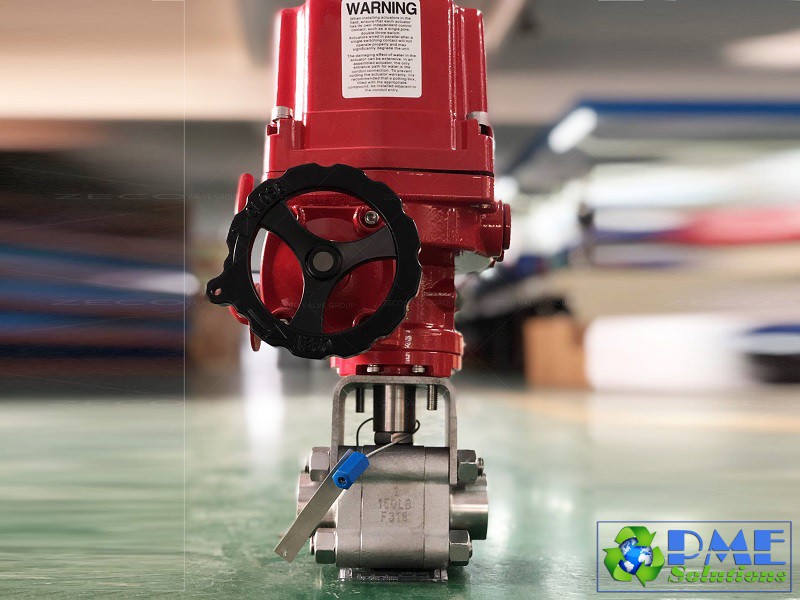

Van bi điện 1" hiệu Zeco - 1 Inch Motorized Ball Valve

Description

Our 1” motorized ball valves come with the reliability and sturdiness you would expect with a slightly larger valve. We have seen these used in a myriad of applications. Their consistency, water resistance, and reliability make them a great choice for your project.Also known as actuated ball valves, these have a motor that can handle high flow rates and pressures. All operate on electricity to automatically start and stop the flow. Valves can be wired as normally closed unless actuated or normally open unless actuated. They don’t require a minimum pressure drop between the inlet and outlet for operation. The actuator is directly mounted to the valve body to minimize movement and reduce wear. A visual flow indicator on the top of the actuator shows whether the valve is open or closed. The manual override allows you to operate the valve during power outages. Motorized ball valves control the flow of a media, liquid, or gas within an automated process control system without the need for a pneumatic air supply. Also known as motorized ball valves, they are common in food service equipment, manufacturing facilities, and irrigation systems.

Specifications of 1 Inch Motorized Ball Valve

• 2-way, bidirectional
• Normally Open
• Energize the actuator to close the valve
• De-energize to open valve (valves open with power from the internal capacitor)
• Visual valve position indicator
• Excellent choice for gravity feed applications
• Excellent choice for applications requiring long activation periods

Technical data of Ball Valve Actuators

• Low power consumption only when position changes. Switches off the actuator.
• Small size suited for valves
• Power consumption – A80 ECO – 10W, A83 – 6W
• Maximum torque – 8 Nm
• Opening/closing time – A80 ECO – 10s, A83 – 8s
• Waterproof class – IP54
• Housing color – A80 ECO – blue, A83 – orange
• Housing material – PA
• The mechanism of steel
• Mechanical position indicator on the lid (except A80 ECO)
• Wire length 900 mm
• Ambient temperature: -10 °C to 50 °C

Maintenance & Repair of 1 Inch Motorized Ball Valve

Maintain and repair these valves without unthreading pipe connections. They have a three-piece bolted body that disassembles inline for easy access to internal components. All operate on electricity to automatically start and stop the flow. Valves don’t require a minimum pressure drop between the inlet and the outlet for operation. All can be wired as normally closed unless actuated or normally open unless actuated. They are full port, so they do not restrict flow.
