VAN DAO ORBINOX MODEL CX

CX MODEL

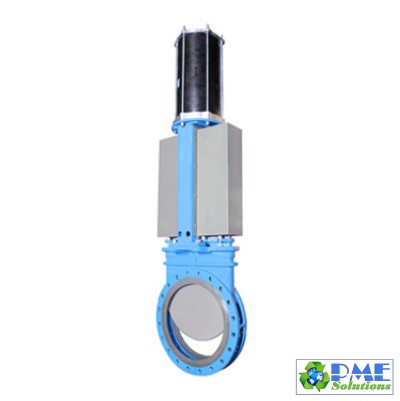

Uni-directional NFPA full flange knife gate valve for coal burner isolation

The CX model knife gate valve is an uni-directional full-flange knife gate valve specially designed to isolate pulverized coal burner lines in coal fired power plants. The design of these valves follows the NFPA 85 requirements.

SIZES
DN 200/8" to DN 900/36"

DESIGN PRESSURE
Exceeds 3,5 bar (50 psi) following NFPA 85

STANDARD FLANGE CONNECTION
DIN PN10
ANSI B16.5 (class 150)

OTHER (ON REQUEST)

DIRECTIVESDIR 2006/42/CE (MACHINERY)
