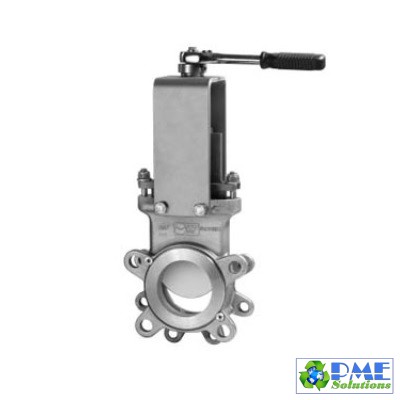

VAN DAO ORBINOX MODEL KP

KP MODEL

Unidrectional wafer style knife gate valve for transmitter isolation

Orbinox KP valve provides isolation of an instrument level transmitter from a storage tank. Installation of this valve allows for transmitter replacement or maintenance without disruption of the process or draining of the vessel.

SIZES
DN 80

STANDARD FLANGE CONNECTION
PN10
ANSI 150

OTHER FLANGE CONNECTION (ON REQUEST)
Tank side:
see pag. 4

WORKING PRESSURE
DN80: 10 bar

DIRECTIVES
DIR 2006/42/CE (MACHINERY)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX)
