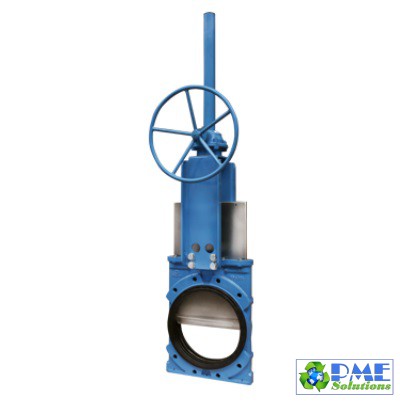

VAN DAO ORBINOX MODEL VG (SER.61)

VG (SER.61) MODEL

Slurry bi-directional wafer style knife gate valve with rubber sleeves

The VG model knife gate is a wafer valve designed for a wide range of industrial applications. The double-seated design provides bi-directional shut off. The design of the valve body and the two rubber sleeves makes the VG valve suited for use in handling abrasive slurries in industries such as:

• Mining
• Power plants
• Chemical plants
• Wastewater treatment
• etc.

SIZES
DN 50 to DN 900 (larger DN on request)

WORKING PRESSURE
DN 50 to DN 400: 10 bar
DN 450 to DN 600: 6 bar or 10 bar
DN 700 to DN 900: 5 bar

Note: higher working pressures on request.

STANDARD FLANGE CONNECTION
EN1092 PN10
ANSI B16.5 (class 150)

OTHER FLANGE CONNECTION (ON REQUEST)

STANDARD FACE TO FACE
see the catalogue

DIRECTIVES
DIR 2006/42/CE (MACHINERY)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX)
