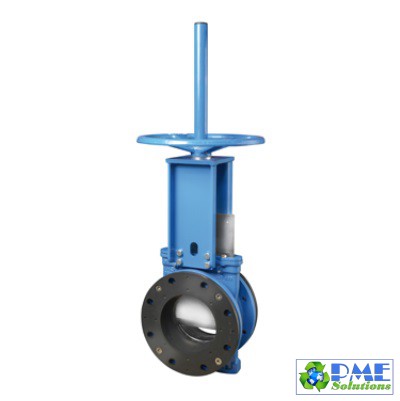

VAN DAO ORBINOX MODEL WG (SER.65)

WG (SER.65) MODEL

Slurry bi-directional heavy duty full flanged wide face-to-face body knife gate valve with rubber sleeves

The WG (SER.65) model knife gate valve is a bi-directional  full flanged valve equipped with two metal reinforced rubber sleeves designed for use in the handling of abrasive slurries, maily in industries such as:

• Mining
• Power plants
• Chemical plants
• Wastewater treatment
• etc.

SIZES
DN 80mm/3" to DN 900mm/36" (larger DN on request)

WORKING PRESSUREDN 80mm/3" to DN 400mm/16": 10 bar (150psi)
DN 450mm/18" to DN 600mm/24": 6 bar (90 psi) or 10 bar (150 psi)
DN 750mm/30": 5 bar (75 psi) or 10 bar (150 psi)
DN 900mm/36": 5 bar (75 psi) or 10 bar (150 psi)

Note: higher pressures and/or diameters on request

STANDARD FLANGE CONNECTION
DIN PN10
ANSI B16.5 (class 150)

OTHER FLANGE CONNECTION (ON REQUEST)
Standard face to face:
see the catalogue

DIRECTIVES
DIR 2006/42/CE (MACHINERY)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones.
