VAN LÚP BÊ NHỰA CPVC BAODI TRUNG QUỐC

VAN LÚP BÊ NHỰA CPVC BAODI TRUNG QUỐC
PLASTIC CPVC FLANGE FOOT VALVE

Transport Package: Carton
Specification: 1/2"-12"
Trademark: BAODI
Origin: China
Color: Grey
End connector: Flange
Model NO.: H41F-10S
Standard: JIS, DIN, ANSI
Material: CPVC
End connection: Flange, Threaded, Socket
HS Code: 8481804090
Working pressure: 0.4~0.6MPa.
PRESSURE RATING: PN10
Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10"
Applications: chemicals,petroleum,chlor-alkali,smelting,pharmacy,
dyeing,food,electroplating,environment,purified water,waste water.

Khối lượng:

1.000.000 đ

Số lượng

Chi tiết sản phẩm
Đánh Giá Sản Phẩm

PLASTIC CPVC FLANGE FOOT VALVE DETAILS

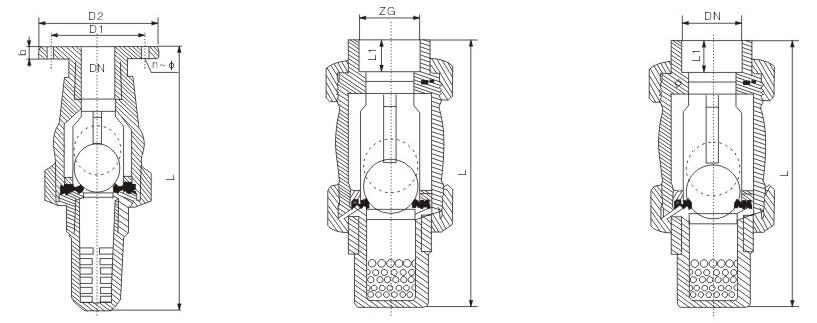

The flange、the screwtop check valve specification

The datas are updating. Please contact our sales for more details

DN	Flangetypesize					Screwtop typesize			Mpa Working Pressure
DN	D2	D1	L	T	N- Φ	ZG	L	LI	Mpa Working Pressure
15	95	65	168	14	4-14	1/2"	140	15	0.6
20	105	75	182	14	4-14	3/4"	168	17	0.6
25	115	85	196	16	4-14	1"	189	20	0.6
32	135	100	224	17	4-18	1¹/ 4"	210	23	0.6
40	145	110	224	18	4-18	1¹/2"	138	25	0.6
50	160	125	252	20	4-18	2^U	280	28	0.6
65	180	140	308	22	4-18	2¹/2"	301	32	0.6
※80	195	160	350	25	8-18	3"	371	32	0.6
100	215	180	392	25	8-18	4"	504	45	0.6
125	245	210	448	30	8-18				0.5
150	280	240	504	30	8-23				0.4
200	335	295	560	35	8-23				0.4
250	395	350	620	38	12-23

Receive insert the check valve specification

The datas are updating. Please contact our sales for more details

DN	Receives inserts the type size(mm)		Mpa Working Pressure
DN	L	LI	Mpa Working Pressure
20	140	15	0.6
25	168	17	0.6
32	189	20	0.6
40	210	23	0.6
50	238	25	0.6
63	280	28	0.6
75	301	32	0.6
90	371	32	0.6
110	504	45	0.6
