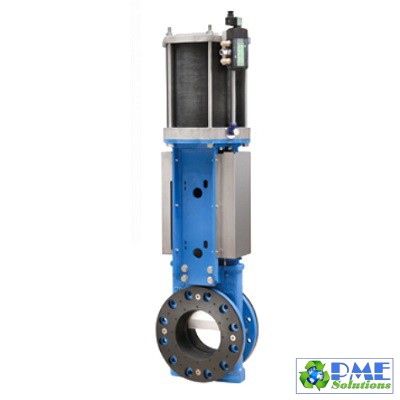

VAN DAO ORBINOX MODEL HG (SER.68)

HG (SER.68) MODEL

Slurry bi-directional high pressure full flanged knife gate valve with rubber sleeves

The HG (SER.68) model knife gate is a bi-directional full flanged heavy duty valve equipped with two metal reinforced rubber sleeves designed for use in the handling of abrasive slurries, mainly in industries such as:

• Mining
• Power plants
• Chemical plants
• Wastewater treatment
• etc.

SIZES: DN 80mm/3" to DN 900mm/36" (larger DN on request)

WORKING PRESSURE: DN 80mm/3" to DN 900mm/36": 20 bar (300psi)

Note: higher pressures and/or diameters on request

STANDARD FLANGE CONNECTION
DIN PN25 (EN 1092-2)
ANSI B16.5 (class 300)

OTHER FLANGE CONNECTION (ON REQUEST)

STANDARD FACE TO FACE: See the catalogue
