RD-25SN/RD-25SRN - VAN GIẢM ÁP VENN NHẬT

VAN GIẢM ÁP VENN NHẬT - MODEL: RD-25SN/RD-25SRN
Anh chị vui lòng gọi điện hoặc gởi nhu cầu qua ZALO số 0902720814 / 0907450506 / 0766226161 gặp nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc gửi email vào hòm thư: sales@pm-e.vn / info@pm-e.vn.

Khối lượng:

1.000.000 đ

Số lượng

Chi tiết sản phẩm
Đánh Giá Sản Phẩm

Pressure reducing valve (for water / liquid / door-to-door water supply), constant flow valve, water hammer preventer

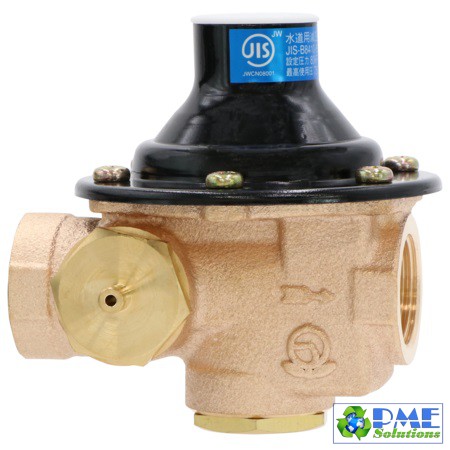

RD-25SN type pressure reducing valve for water supply

A pressure reducing valve used to supply water to small hot water boilers and electric water heaters, and can be installed horizontally or vertically. Use for cold regions with a drain plug in places where there is a risk of freezing, such as in cold regions.

Major features

Durability is improved by adopting chlorine water resistant EPDM. (RD-50SN type series)
Vertical and horizontal piping is possible. (Excluding strainer cap upward)

Specification:

The face-to-face dimensions differ between the RD-25SN type series and the RD-50SN type series.
The pressure reducing valve for door-to-door water supply is the Benkei series. (Refer to pages 50-66.)

Product code	RD25SN-F
Valve type	Pressure reducing valve for water supply
Use	For general use
type	For 80kPa
Nominal diameter	20 (3/4)
Applicable fluid	Tap water
Fluid temperature	5 to 55 ° C
Primary side applied pressure	750kPa or less
Face-to-face dimensions	90mm
Secondary adjustment pressure range (set pressure)	80kPa
Open flow rate	30L / min or more
Attached mechanism	Reverse stop mechanism, negative pressure operation mechanism, strainer (60 mesh) drain plug (RD-25SRN, 50SRN, 50SRHN type)
Closing pressure of reverse stop mechanism	3kPa or more
Opening pressure of negative pressure operating mechanism	-55kPa or less
Closed operating pressure of negative pressure operating mechanism	50kPa or less
End connection	JIS R c3 / 4 screw
Body pressure resistance test	1.75MPa at water pressure
Mounting posture	Horizontal / vertical freedom (excluding strainer cap upward)
accessories	Insulation case
Material body	CAC406
Material diaphragm	NBR
Material disc	NBR
