RD-14W - VAN GIẢM ÁP VENN

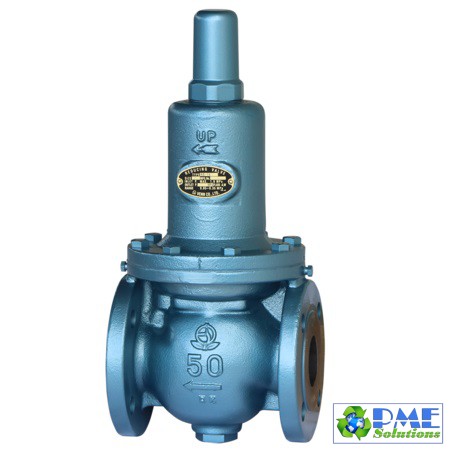

VAN GIẢM ÁP VENN MODEL: RD-14W
RD-14W type pressure reducing valve (for water, hot water, air, oil)


A direct acting pressure reducing valve for water, liquid, and air that has a small pressure fluctuation range and can be used from small to large flow rates.
In building equipment, it is used for water supply pressure control from elevated water tanks of middle- and high-rise buildings to each floor, water supply pressure control by direct connection to a pump that does not depend on the elevated water tank method, and other boiler water supply. For industrial use, it is used for fuel oil, lubricating oil, air pressure control, etc.

Major features

• Due to the pressure balance structure, the change in the set pressure is small.
• Maintenance is easy because the inside can be inspected by disassembling from one direction on the upper side.
• RD-14CN type is a nylon coating to prevent red water.

Specification:

• We also manufacture the RD-14PN type (inner and outer surface epoxy resin powder coating) that conforms to the performance standards of the Waterworks Law.
• We also manufacture a pressure gauge with a connection hole (JIS Rc1 / 4 screw) on the side of the main body, or a pressure gauge with a pressure gauge attached to it. (The maximum scale of the pressure gauge is 1.6MPa on the primary side, and the adjustment pressure range L (0.6MPa) and M, H (1.6MPa) on the secondary side.)
