WVR-02T - VAN GIẢM ÁP VENN NHẬT

WVR-02T - VAN GIẢM ÁP VENN NHẬT

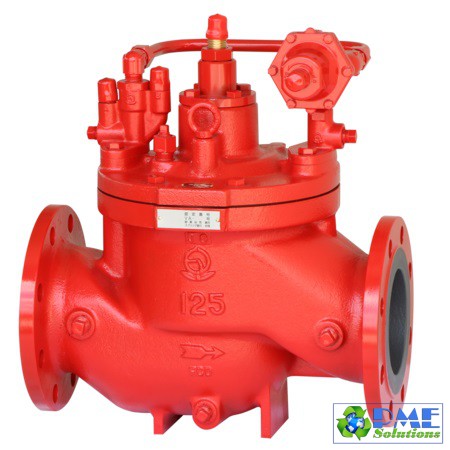

WVR-02T type pressure reducing valve for fire extinguishing equipment

It is a pressure reducing valve for large capacity and is a type-approved registered product for fire extinguishing equipment. Since the pilot valve uses a pressure balance mechanism, the pressure on the secondary side can be adjusted to a constant level without being affected by fluctuations in the pressure on the primary side.

Where to use: Fire extinguishing equipment

Major features

• Stable operation can be easily obtained by adjusting the sensitivity by adjusting the needle valve opening according to the usage conditions.
• The basic valve and pilot valve can be easily disassembled for easy adjustment, repair and parts replacement.

Japan Fire Equipment Safety Center Type Certification Registered Product

Specification:

• We also manufacture with two pressure gauges. (The maximum scale of the pressure gauge is 2.5MPa on the primary side, adjustment pressure range L (0.6MPa), H (1.6MPa), 0.3 to 1.2MPa (1.6MPa) on the secondary side.)
