VAN GIẢM ÁP CHO NƯỚC VENN NHẬT
MODEL: WVR-02
Pressure reducing valve (for water / liquid / door-to-door water supply), constant flow valve, water hammer preventer

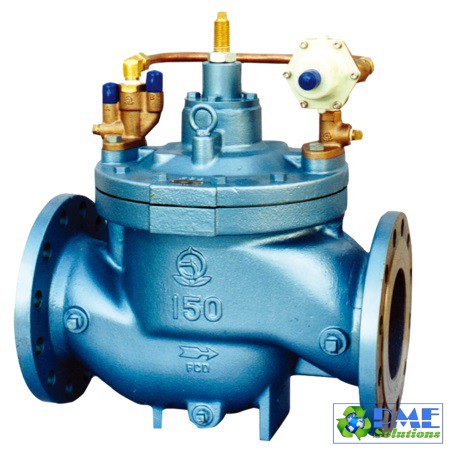

WVR-02 type pressure reducing valve (for water / hot water)

A large-capacity pressure reducing valve used for the main water supply line for air conditioning, sanitary equipment, and field irrigation. Since the pilot valve uses a pressure balance mechanism, the pressure on the secondary side can be adjusted to a constant level without being affected by fluctuations in the pressure on the primary side.
For fire extinguishing equipment, please use WVR-02T, 05T type or RD-51T type, which are certified by the Fire Equipment and Safety Center of Japan. See pages 81 and 82)

Where to use: Building equipmentFactory equipmentUpland irrigation

Major features

Stable operation can be easily obtained by adjusting the sensitivity by adjusting the needle valve opening according to the usage conditions.
The basic valve and pilot valve can be easily disassembled for easy adjustment, repair and parts replacement.
The lift limiting mechanism can limit the overflow.

Specification:

WVR-02PN type (main body inner and outer surface epoxy resin powder coating, nominal diameter 80-200), WVR-02N type (main body material FC, liquid epoxy resin coating for inner water supply, nominal diameter 80-200) 300) is also manufactured. (Excluding JIS 16K RF flange made by FC)
We also manufacture with two pressure gauges.
Please refer to page 84 for the nominal diameter selection chart.

Product code	WVR02-L □	WVR02-B □
Valve type	Pressure reducing valve
Use	Goods
Nominal diameter	40-200 (1 1/2-8)	50-400 (2-16)
Applicable fluid	Water / hot water
Fluid temperature	5-60 ℃
Primary side applied pressure	1.0MPa or less
Secondary adjustment pressure range (set pressure)	Nominal diameter 200 or less L: 0.05 to 0.35, H: 0.3 to 0.95 MPa Nominal diameter 250 or more L: 0.05 to 0.35, H: 0.3 to 0.7 MPa
Maximum decompression ratio	10: 1
Minimum differential pressure before and after the valve	0.05MPa
offset	Secondary side adjustment pressure 0.05-0.35MPa: within 0.08MPa Secondary side adjustment pressure 0.3 to 0.95 (0.7) MPa: Within 0.1 MPa
End connection	JIS 10K RF flange or sluice valve flange for water supply
Mounting posture	Horizontal / vertical freedom (however, for nominal diameters of 250 or more, it is mounted upright on horizontal pipes)
Basic valve material body	FCD	FC
Basic valve material Main part Valve seat	CAC406
Basic valve material Main part Diaphragm	NBR
Basic valve material Main part disc	NBR
Basic valve coating or coating coating	Inner surface: Liquid epoxy resin for water supply
