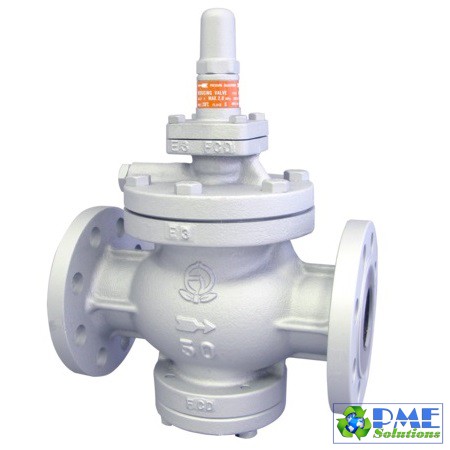

RP-9A - VAN GIẢM ÁP DÙNG CHO KHÍ VENN NHẬT

RP-9A - VAN GIẢM ÁP DÙNG CHO KHÍ AIR VENN NHẬT
Anh chị vui lòng gọi điện hoặc gởi nhu cầu qua ZALO số 0902720814 / 0907450506 / 0766226161 gặp nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc gửi email vào hòm thư: sales@pm-e.vn / info@pm-e.vn.

Khối lượng:
1.000.000 đ
Số lượng

RP-9A - VAN GIẢM ÁP DÙNG CHO KHÍ AIR VENN NHẬT
RP-9A type pressure reducing valve (for air / gas)



It is a pilot type pressure reducing valve used for high pressure air and gas, and is a sister model of the RP-9, 10, 11 type steam pressure reducing valve.
The face-to-face dimensions are the same as the old RP-2HA type pressure reducing valve, and the weight is reduced by about 40%.
Please refer to pages 21 and 22 of the catalog for the nominal diameter selection chart.

specification

Product code RP9A-L RP9A-M
type Made of ductile cast iron
Nominal diameter 15-150 (1/2-6)
Applicable fluid Air / gas
Fluid temperature 5 ~ 80 ° C
Primary side applied pressure 2.0MPa or less
Secondary adjustment pressure range 0.03 ~ 0.8MPa 0.03 ~ 0.8MPa
Minimum differential pressure before and after the valve 0.07MPa
Deadline boost 0.02MPa or less
offset Within 0.02MPa (secondary adjustment pressure 0.03 ~ 0.035MPa)
Within 0.03MPa (over 0.035 secondary adjustment pressure 0.07MPa)
Within 0.05MPa (exceeding the secondary adjustment pressure 0.07 and 0.8MPa)
Allowable leakage amount 0.01% or less of the rated flow rate (RP-9A type nominal diameter 80 or less is none (visual pressure gauge)
End connection JIS 20K RF flange
Material body FCD
Material Valve body C3604 / NBR baking SUS / NBR baking
Material Valve seat SUS
Material Piston / Cylinder C3604 / CAC SUS
Handle or cap color Silver Green
Body pressure resistance test 1.5 times the nominal flange pressure with water pressure
Mounting posture Upright mounting on horizontal piping
  • For RP-10A and 11A types, we also manufacture high pressure gas certified products.
