RP-6 - VAN GIẢM ÁP HƠI VENN

RP-6 - VAN GIẢM ÁP HƠI VENN
Anh chị vui lòng gọi điện hoặc gởi nhu cầu qua ZALO số 0902720814 / 0907450506 / 0766226161 gặp nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc gửi email vào hòm thư: sales@pm-e.vn / info@pm-e.vn.

Khối lượng:
1.000.000 đ
Số lượng

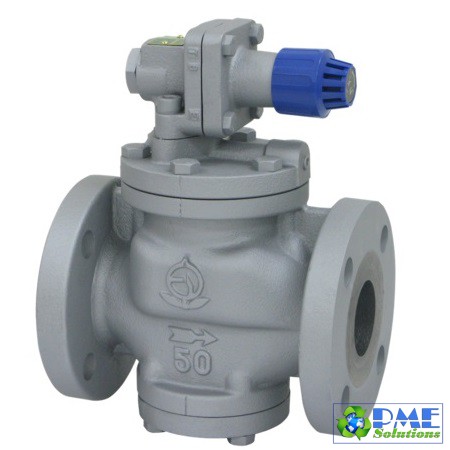

RP-6 - VAN GIẢM ÁP HƠI
RP-6 type pressure reducing valve (for steam)




VENN-TEN is a pilot type pressure reducing valve used for main and large flow rate lines in building equipment, industrial steam lines, various production equipment, equipment industry, etc. Designed with the primary goal of reliable operation, this pressure reducing valve exhibits stable performance under various conditions, and is compact and lightweight, making it easy to install and handle.
Please refer to page 14 of the catalog for the nominal diameter selection chart.


Where to use: Building equipment, Factory equipment

Major features

  • Stable control is achieved by adopting a piston guide structure and a special seal ring.
  • It can be used for a wide range of pressure and flow rates.
  • The RP-6 type has an automatic lock mechanism (nominal diameter 15 to 80), and the pressure can be easily adjusted by manually operating the handle.
  • It is a compact design.

Specification

Product code RP6-B RP6-G
Adjustment method Manual handle type (nominal diameter 15 to 80), adjusting screw type (nominal diameter 100 to 200)
Nominal diameter 15-200 (1/2-8)
Applicable fluid steam
Fluid temperature 184 ° C or less
Primary side applied pressure 1.0MPa or less
Secondary adjustment pressure range 0.03 ~ 0.8MPa
Minimum differential pressure before and after the valve Nominal diameter 15 ~ 80: 0.05MPa, Nominal diameter 100 ~ 200: 0.07MPa
Deadline boost 0.02MPa or less
offset Nominal diameter 15 ~ 80: Within 0.02MPa (Secondary adjustment pressure 0.03 ~ 0.035MPa) Within 0.03MPa (Secondary adjustment pressure over 0.035 0.07MPa) Within 0.05MPa (Secondary adjustment pressure over 0.07 0.8MPa)
Nominal diameter 100 ~ 200: Within 0.05MPa
Allowable leakage amount 0.05% or less of the rated flow rate
End connection JIS 10K FF flange
Material body FC
Material Valve body SUS
Material Valve seat SUS
Material Piston / Cylinder CAC406 SUS
Handle or cap color Blue (silver for nominal diameters of 100 and above) Green
Body pressure resistance test 1.5MPa at water pressure
Mounting posture Upright mounting on horizontal piping
  • We also manufacture a special heat insulation jacket. Please contact us.
  • If multiple once-through boilers are controlled and operated, the pressure on the primary side of the pressure reducing valve may fluctuate significantly. Please contact us if you want to install it in such a place.
  • Please contact us if you want to use it for frequently operated applications such as Styrofoam molding machines
