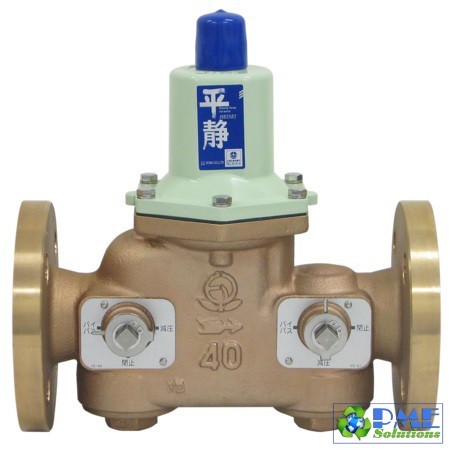

MODEL: RDB-33FN - VAN GIẢM ÁP VENN NHẬT
RDB-33FN type pressure reducing valve with bypass (for water / hot water)

A pressure reducing valve that integrates the functions of decompression + bypass + closing makes it possible to effectively use space and reduce equipment costs.
It inherits the reliability and ease of use of the water pressure reducing valve [calm] series.

Major features

Uses a ball-type switching valve system that facilitates function selection operations.
Bypass function enables cleaning and water flow in the pipe at the initial stage of water flow.
Withstand voltage test of piping is possible with the pressure reducing valve with bypass attached.
Maintenance of the pressure reducing valve is possible while passing water.

specification

Product code	RDB33FN-FH	RDB33FN-FL
Valve type	Pressure reducing valve
Nominal diameter	20-100 (3/4-4)
Applicable fluid	Water / hot water
Fluid temperature	5 to 90 ° C
Primary side applied pressure	1.0MPa or less
Secondary adjustment pressure range (set pressure)	0.3-0.7MPa	0.05-0.35MPa
Maximum decompression ratio	10: 1
Minimum differential pressure before and after the valve	0.05MPa
Allowable leakage amount	None (visual pressure gauge)
End connection	Nominal diameter 20/25: JIS 10K loose flange Nominal diameter 32-100: JIS 10K FF flange
Body pressure resistance test	1.75MPa at water pressure
Mounting posture	Horizontal / vertical freedom
Material body	CAC406
Material diaphragm	NBR
Material Flange	Nominal diameter 20/25: SUS304, Nominal diameter 32-100: CAC406
Material disc	NBR
Material parts	CAC406
Material Spring case	Nominal diameter 20-50: ADC, Nominal diameter 65-100: FC

We also manufacture pressure gauge attachments. (The maximum scale of the pressure gauge is 1.6MPa on the primary side and the adjustment pressure range L (0.6MPa) and H (1.6MPa) on the secondary side.)
