RD-41/41F - VAN GIẢM ÁP HƠI NÓNG VENN NHẬT

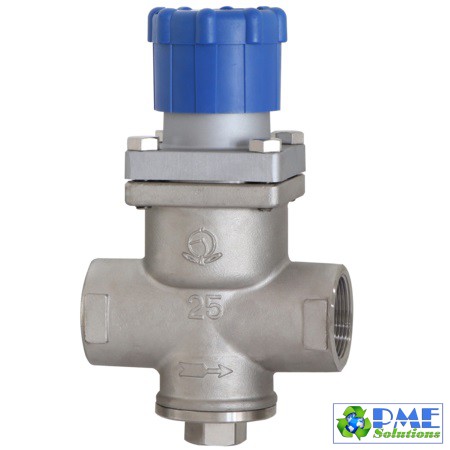

RD-41 type pressure reducing valve (for steam)

A direct acting pressure reducing valve suitable for fine control of steam pressure in various devices. Compact and lightweight, it is ideal for embedding in equipment.
A pressure reducing valve that is ideal for food / kitchen equipment, medical equipment, laundry equipment, and air conditioning equipment (humidification) that dislike rust.
For higher grade steam lines, the main body is made of stainless steel.

Where to use: Food machineryMedical equipmentLaundry equipment

Major features

It is possible to secure a large flow rate (heat amount) required when starting up the equipment.
The main body is made of bronze or stainless steel, and the main part is made of stainless steel, so clean steam can be supplied.
The secondary pressure can be finely adjusted with the manual handle of the automatic locking mechanism.
High durability with SUS316L bellows.

specification

Product code	RD41-D □
type	Made of stainless steel, screwed
Nominal diameter	15-25 (1/2-1)
Applicable fluid	steam
Fluid temperature	220 ℃ or less
Primary side applied pressure	1.0MPa or less
Secondary adjustment pressure range	(Name plate / spring color) L: 0.02 to 0.25MPa (green), M: 0.2 to 0.4MPa (blue), H: 0.35 to 0.8MPa (red)
Minimum differential pressure before and after the valve	0.02MPa
