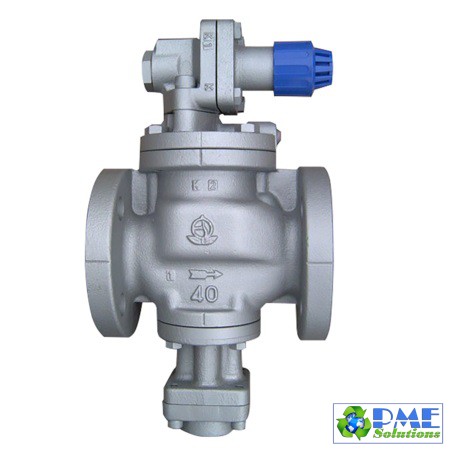

RP-6BD type pressure reducing valve with built-in trap (for steam)



A pilot type pressure reducing valve with a built-in steam trap, which is a sister model to the Benten RP-6 type. It is ideal as a pressure reducing valve installed in places where drainage tends to accumulate, such as falling pipes, where you want to prevent drainage from flowing out after the pressure reducing valve.
Please refer to page 14 of the catalog for the nominal diameter selection chart.

Where to use: Building equipmentFactory equipment

Major features

• The position of the drain discharge hole can be changed every 90 degrees, so piping can be done according to the installation location.
• Stable control is achieved by adopting a piston guide structure and a special seal ring.
• It can be used for a wide range of pressure and flow rates.
• Pressure adjustment is easy by operating the manual handle with an automatic lock mechanism.
• It is a compact design.

Specification

Product code	RP6BD-B	RP6BD-G
Nominal diameter	15-50 (1/2-2)
Applicable fluid	steam
Fluid temperature	184 ° C or lessAnnotation
Primary side applied pressure	1.0MPa or less
Secondary adjustment pressure range	0.03 ~ 0.8MPa
Minimum differential pressure before and after the valve	0.05MPa
Deadline boost	0.02MPa or less
offset	Within 0.02MPa (secondary adjustment pressure 0.03 ~ 0.035MPa) Within 0.03MPa (over 0.035 secondary adjustment pressure 0.07MPa) Within 0.05MPa (exceeding the secondary adjustment pressure 0.07 and 0.8MPa)
Allowable leakage amount	0.05% or less of the rated flow rate
Allowable back pressure in the trap	70% or less of primary pressure
End connection	JIS 10K FF flangeAnnotation
Material body	FC
Material Valve body	SUS
Material Valve seat	SUS
Material Piston / Cylinder	CAC406	SUS
Handle or cap color	Blue	Green
Body pressure resistance test	1.5MPa at water pressure
Mounting posture	Upright mounting on horizontal piping
