RP-8 - VAN GIẢM ÁP HƠI NÓNG (STEAM) VENN - NHẬT

RP-8 - VAN GIẢM ÁP HƠI  NÓNG (STEAM) VENN - NHẬT
Anh chị vui lòng gọi điện hoặc gởi nhu cầu qua ZALO số 0902720814 / 0907450506 / 0766226161 gặp nhân viên kinh doanh để được tư vấn kỹ thuật và báo giá cụ thể hoặc gửi email vào hòm thư: sales@pm-e.vn / info@pm-e.vn.

Khối lượng:
1.000.000 đ
Số lượng

RP-8 - VAN GIẢM ÁP HƠI

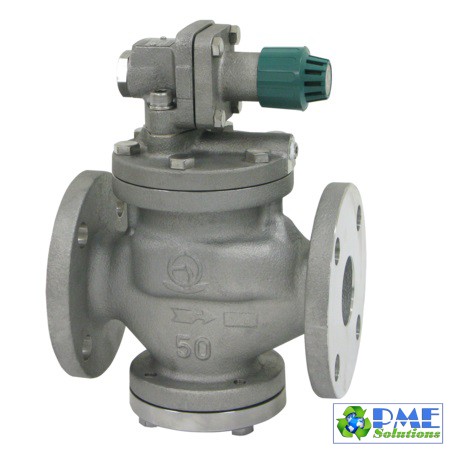

RP-8 type pressure reducing valve (for steam)




A pilot type pressure reducing valve whose main body and main parts are made of stainless steel, and is ideal for steam lines such as food, disinfection, and sterilization equipment. In addition, it can be used in a wide range of applications due to the corrosion resistance and durability that are the characteristics of stainless steel.
Please refer to page 14 of the catalog for the nominal diameter selection chart.


Where to use: Food processing equipmentFactory equipment; Disinfection / sterilization equipment

Major features

  • Stable control is achieved by adopting a piston guide structure and a special seal ring.
  • It can be used for a wide range of pressure and flow rates.
  • Pressure adjustment is easy by operating the manual handle with an automatic lock mechanism.
  • It is a compact design.

Specification

Product code RP8-D
Nominal diameter 20-80 (3/4-3)
Applicable fluid steam
Fluid temperature 200 ° C or less
Primary side applied pressure 1.0MPa or less
Secondary adjustment pressure range 0.03 ~ 0.8MPa
Minimum differential pressure before and after the valve 0.05MPa
Deadline boost 0.02MPa or less
offset Within 0.02MPa (secondary adjustment pressure 0.03 ~ 0.035MPa)
Within 0.03MPa (over 0.035 secondary adjustment pressure 0.07MPa)
Within 0.05MPa (exceeding the secondary adjustment pressure 0.07 and 0.8MPa)
Allowable leakage amount 0.05% or less of the rated flow rate
End connection JIS 10K FF flange
Material body SCS
Material Valve body SUS
Material Valve seat SUS
Material diaphragm SUS
Handle or cap color Green
Body pressure resistance test 1.5MPa at water pressure
Mounting posture Upright mounting on horizontal piping
  • Use RD-41, 41F type (page 25) for nominal diameter 15 and RP-11 type for nominal diameters 100 to 150 and 3.0 MPa
